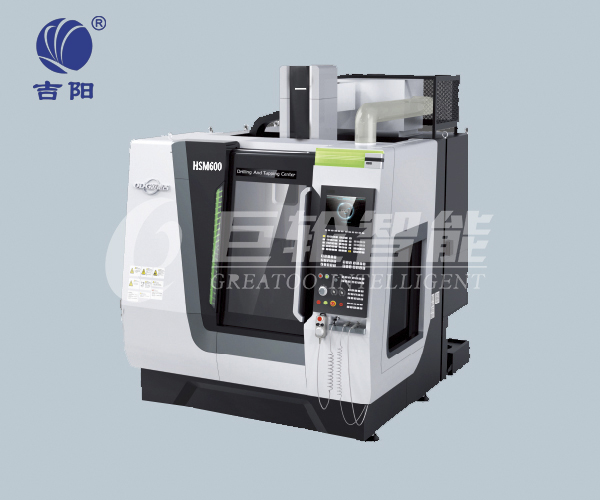

事情台 /Workbench
|
事情尺寸/Working dimension
|
680x520mm
|
事情台承重/Table bearing
|
500kg
|
T型槽尺寸/Type T groove size
|
4-14x125 mm x n
|
|
加工规模/Machining range
|
X轴最大行程/X axis Max stroke
|
650mm
|
Y轴最大行程/Y axis Max stroke
|
520mm
|
Z轴最大行程/Z axis Max stroke
|
320mm
|
|
主轴端面至事情台距离最大/最小
Spindle end face to the maximum / minimum distance
|
460/140mm(标准)
460/140mm (standard)
|
|
主轴 /Principal axis
|
主轴锥孔/Taper of spindle
|
HSK E40
|
转速/Speed
|
30000(电主轴Motorized spindle)r/min
|
最大输出扭矩/Maximum output torque
|
16.3(电主轴Motorized spindle)N · m
|
主电机功率/Main motor power
|
8.5KW(电主轴Motorized spindle)
|
|
刀库/The knife
|
最大刀具长度/Maximum tool length
|
150mm
|
刀库形式/Tool magazine form
|
刀臂式刀库/Cutter arm type cutter
|
刀库容量/Tool magazine capacity
|
24把（unit）
|
最大刀具直径/Maximum tool diameter
|
60mm(满刀) /120mm（相邻空刀）
60mm (full knife) /120mm (adjacent to the empty knife)
|
最大刀具重量/Maximum tool weight
|
3kg
|
换刀时间（刀对刀）/Tool change time (T-T)
|
1.2s
|
|
进给/Feed
|
切削进给速率规模/Cutting feed speed range
|
1-30000mm/min
|
快速移动速率X/Y/Z轴/Fast moving speed X/Y/Z axis
|
40/40/40m/min
|
|
定位不确定性 /Location uncertainty
|
VDI/DGQ3441-X/Y/Z轴(axis)
|
0.01/0.01/0.01mm
|
|
重复定位精度 /Repeated positioning accuracy
|
|
VDI/DGQ3441-X/Y/Z轴(axis)
|
0.005/0.005/0.005mm
|
|
|
数控系统/numerical control system
|
西门子/SIEMENS828D-280
|
电气总容量/Total electric capacity
|
20kVA
|
|
机床轮廓尺寸/Machine tool profile dimensions
|
长/Length
|
1960mm
|
宽/Wide
|
2450mm
|
高/High
|
2680mm
|
|
|
气源流量/Air flow
|
0.1~0.2M?/min
|
机床总重量/Total weight of machine tool
|
5000kg
|
